QwickServe Order Manager Orders Management Interface

In this section, you will learn:

• How to switch to the orders management interface
• About the orders management interface

Switching to the Orders Management Interface

Depending on the current interface, you can switch to the orders management interface in the following ways:

• From the main interface
• From the administrator's interface

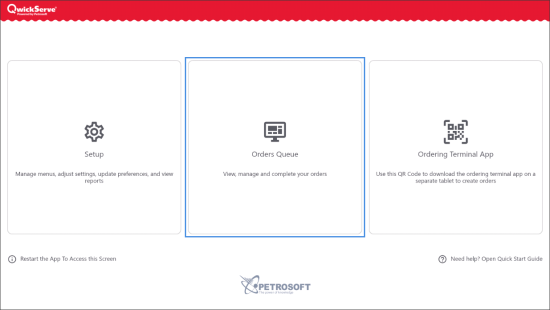

Switching to the Orders Management Interface from the Main Interface

When the QwickServe Order Manager is launched, the main interface is displayed.

To switch from the main interface to the orders management interface:

1. Tap Orders Queue.



2. From the authorization panel:
1. In the Employee list, select you user and tap it.
2. Using the PIN Pad at the right of the panel, enter the user PIN.

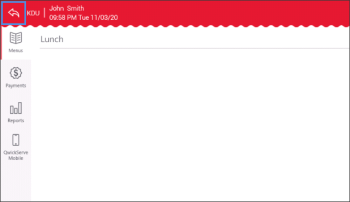

Switching to the Orders Management Interface from the Administrator's Interface

To switch to the orders management interface from the administrator's interface:

1. At the top left corner of the administrator's interface, tap the back icon.



2. From the authorization panel:
1. In the Employee list, select you user and tap it.
2. Using the PIN Pad at the right of the panel, enter the user PIN.

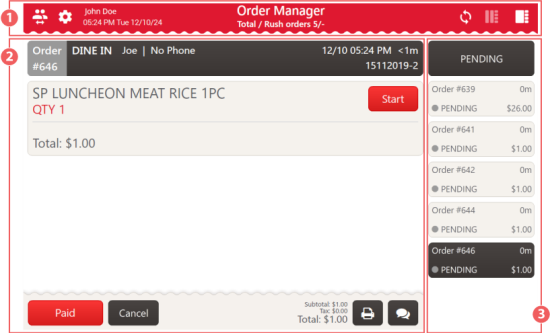

About the Orders Management Interface

Orders management interface consists of 2 main parts: Top Menu and Working Area.

Top Menu contains the following elements:

• On the left side:
• The users icon that allows you to change the user who is processing orders. For details, see Changing the User.
• The settings icon that switches you to the administrator's interface. For details, see QwickServe Order Manager Administrator's Interface.
• Current user name, current date, weekday and local time.
• In the middle: The total number of orders and the number of rush orders. For details, see Orders Statuses.
• On the right side:
• The close shift icon that allows you to close the shift. For details, see Closing the Shift.
• The synchronize icon that allows you to check the synchronization status of the QwickServe Order Manager. For details, see Monitoring Synchronization Status.
• The multiple orders view icon that switches you to the multiple orders view.
• The detailed order view icon that switches you to the detailed order view.

Working Area that allows you to process orders. For details, see Working with Orders.
