What's New in DC Box 3.6.5

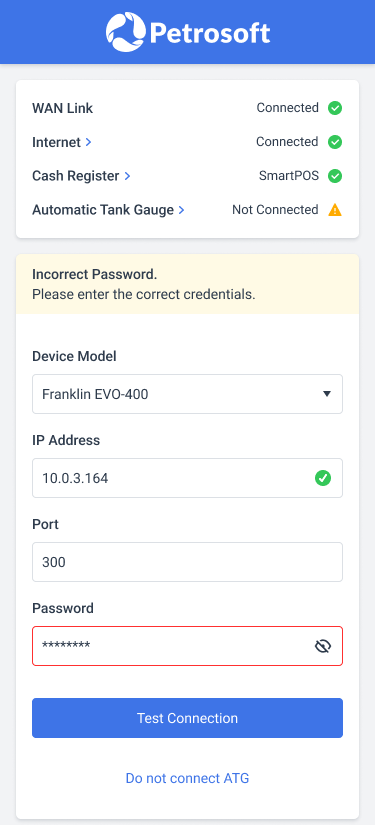

New feature. ATG connection can now be set up using DC Box activation wizard.

DC Box automatically discovers the compatible Automatic Tank Gauge (ATG) device and establishes the connection to it. We support the fuel monitoring data for the following ATG brands and models:

• Franklin EVO-400
• Franklin EVO-550
• Pneumercator TMS-3000
• Site Sentinel TS-504
• Veeder Root TLS-350
• Veeder Root TLS-250
• Veeder Root TLS-200

If automatic configuration fails or you need to set up ATG later, you can manually configure the ATG connection using the DC Box activation wizard.

Read the following articles for details:

• Setting up ATG on DC-400 Series device
• Setting up ATG on DC-700 Series device

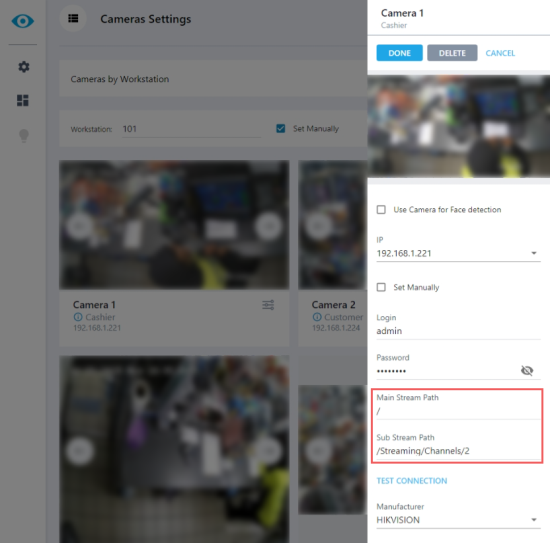

New feature. Added the ability to specify paths for the main and sub video streams.

For optimal performance and minimized bandwidth usage during real-time video streaming, Loss Prevention Analytics requires that the compatible camera can broadcast at least two simultaneous video streams. While both streams deliver the same video content, they are optimized differently to balance quality and required bandwidth.

1. Main stream: A high-quality video stored for retroactive review and auditing. It provides maximum detail and clarity, though it comes with a significantly larger file size.
2. Sub stream: A lower-quality video with reduced detail, requiring significantly less bandwidth, making it ideal for real-time streaming.

You can now directly specify the relative path to each video stream, making the solution compatible with almost any IP camera. These setting are optional. DC Box will attempt to automatically determine the optimal configuration based on the camera's model.

Read Configuring Camera Settings for details.

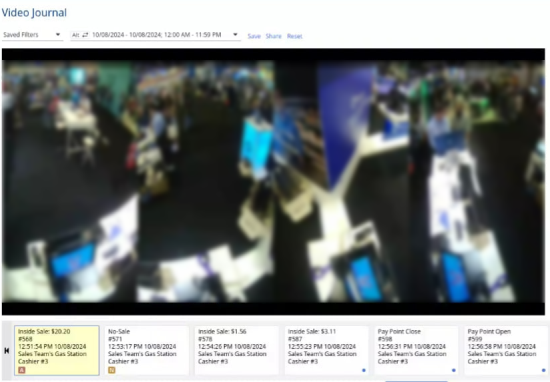

Enhancement. Added support for videos from vertically oriented cameras.

DC Box provides the information about the video orientation to Loss Prevention Analytics. This information is used to automatically adjust the video tile mosaic to optimally display portrait (vertical) videos.

This guarantees a seamless viewing experience by aligning the video tiles correctly, without distortion or clipping, regardless of the camera’s orientation.
