Cost of Goods Sold Conexxus Data Mapping

Data in this section is described in accordance with the Conexxus Standard: https://www.conexxus.org/.

In this section, the following information about the Cost of Goods Sold data is presented:

Cost of Goods Sold Settings in CStoreOffice®
Cost of Goods Sold Data Mapping Table
XML Example with Cost of Goods Sold Data
Cost of Goods Sold Data Export via the Business Documents API

The information from the Cost of Goods Sold report becomes accessible through the Business Documents API after the day is completed in CStoreOffice® Cash Reconciliation daily data.

Cost of Goods Sold Settings in CStoreOffice®

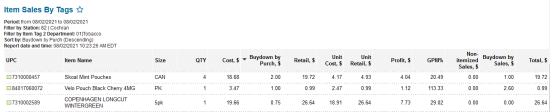

COGS report data set provided through API is being built from the data taken from the CStoreOffice® Item Sales By Tags report.

This form can be opened from the Reports > Store Reports. For more information, see Item Sales by Tags Report.

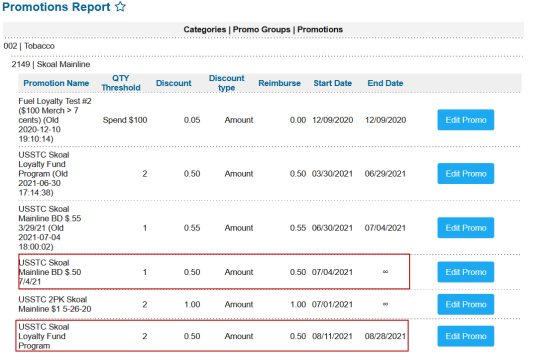

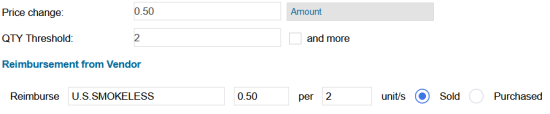

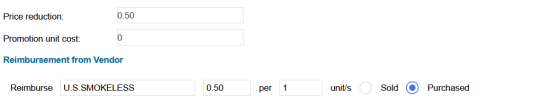

Some data, that is missing in report, but required to be pushed in XML according to Conexxus standard, is being pulled directly from PB. Detailed buydown by promotions data is extracted from item promotions settings.

Cost of Goods Sold Data Mapping Table

Report uses Conexxus 3.5 NAXML-MovementReport XSD schema.

Cost of Goods Sold data from the above form is converted to XML data according to the Cost of Goods Sold Data Mapping Table which is presented below.

Cost of Goods Sold Data Mapping Table

XML Path	Description
NAXML-MovementReport/TransmissionHeader/ StoreLocationID	CSO Location ID.
NAXML-MovementReport/TransmissionHeader/ VendorName	Permanent CStoreOffice® value.
NAXML-MovementReport/TransmissionHeader/ VendorModelVersion	XML version NXML3.4.5.
XML Path	Description
NAXML-MovementReport/ItemSalesMovement/ ReportSequenceNumber	Unique report number for future references.
NAXML-MovementReport/ItemSalesMovement/ MovementHeader/ PrimaryReportPeriod	Report ordinary number in current day. In most cases the report number equals to 1.
NAXML-MovementReport/ItemSalesMovement/ MovementHeader/BusinessDate	The date when the report was generated and sent. Equals to the date value of the Report date and time.
NAXML-MovementReport/ItemSalesMovement/ MovementHeader/BeginDate	Beginning of the date range configured for report build. On automated export will equal to business date. Equals to the value of the Period from the Item Sales by Tags report.
NAXML-MovementReport/ItemSalesMovement/ MovementHeader/BeginTime	Beginning of the date range configured for report build. On automated export will be equal to 00:00:00.
NAXML-MovementReport/ItemSalesMovement/ MovementHeader/EndDate	Ending of date range configured for the report build. On automated export will be equal to the business date. Equals to the value of the Period from the Item Sales by Tags report.
NAXML-MovementReport/ItemSalesMovement/ MovementHeader/EndTime	Ending of the date range configured for the report build. On automated export will be equal to 23:59:59.
XML Path	Description
NAXML-MovementReport/ItemSalesMovement/ISMDetail	The block represents each line of the source report, represents single items.
NAXML-MovementReport/ItemSalesMovement/ ISMDetail/ItemCode	The block contains item codes.
NAXML-MovementReport/ItemSalesMovement/ ISMDetail/ItemCode/POSCodeFormat/@format	Item code format, possible values can be found in XSD schema. For COGS (Item Sales by Tags report), always equals to gtin values.
NAXML-MovementReport/ItemSalesMovement/ ISMDetail/ItemCode/POSCode	GTIN code created from the UPC field's value of the Item Sales by Tags report.
NAXML-MovementReport/ItemSalesMovement/ ISMDetail/ItemCode/POSCodeModifier	POS Code modifier number, if any. For this report is always sent as zero (0).
NAXML-MovementReport/ItemSalesMovement/ ISMDetail/ItemCode/ItemID	GTIN created from the UPC field value of the Item Sales by Tags report.
NAXML-MovementReport/ItemSalesMovement/ ISMDetail/ItemCode/Description	The Item Name field's value from the Item Sales by Tags report.
NAXML-MovementReport/ItemSalesMovement/ ISMDetail/ItemCode/MerchandiseCode	CR Department ID assigned for the Price Book item.
NAXML-MovementReport/ItemSalesMovement/ ISMDetail/ItemCode/ISMSellPriceSummary	Contains detailed information about item sales during the report period.
NAXML-MovementReport/ItemSalesMovement/ ISMDetail/ItemCode/ISMSellPriceSummary/ActualSalesPrice	The Unit Retail field's value from the Item Sales by Tags report.
NAXML-MovementReport/ItemSalesMovement/ ISMDetail/ItemCode/ISMSellPriceSummary/ISMSalesTotals	Contains summarized sales data for the report period.
NAXML-MovementReport/ItemSalesMovement/ ISMDetail/ItemCode/ISMSellPriceSummary/ ISMSalesTotals/SalesQuantity	The QTY field's value from the Item Sales by Tags report.
NAXML-MovementReport/ItemSalesMovement/ISMDetail/ ItemCode/ISMSellPriceSummary/ ISMSalesTotals/SalesAmount	The Retail field's value from the Item Sales by Tags report.
NAXML-MovementReport/ItemSalesMovement/ ISMDetail/ISMSellPriceSummary/ISMSalesTotals/ PromotionTotal[n]	Contains buydown details according to promotions triggered buydowns.
NAXML-MovementReport/ItemSalesMovement/ ISMDetail/ISMSellPriceSummary/ISMSalesTotals/ PromotionTotal[n]/PromotionID	CSO Promotion ID triggered buydown appearance. ID is know during the Item Sales by Tags report's build, report itself contains only buydowns summarized data.
NAXML-MovementReport/ItemSalesMovement/ ISMDetail/ISMSellPriceSummary/ISMSalesTotals/ PromotionTotal[n]/PromotionCount	Quantity of items sold with particular promotion applied.
NAXML-MovementReport/ItemSalesMovement/ ISMDetail/ISMSellPriceSummary/ISMSalesTotals/ PromotionTotal[n]/PromotionQuantity	Quantity of items sold with particular promotion applied.
NAXML-MovementReport/ItemSalesMovement/ ISMDetail/ISMSellPriceSummary/ISMSalesTotals/ PromotionTotal[n]/PromotionAmount	Calculated Total Amount (QTY*BuyDown Amount).
NAXML-MovementReport/ItemSalesMovement/ ISMDetail/ISMSellPriceSummary/ISMSalesTotals/ PromotionTotal[n]/PromotionReason	Dependent on buydown type triggered by promotion. Possible values: buydownbypurch buydownbysales
NAXML-MovementReport/ItemSalesMovement/ ISMDetail/Extension	Contains all initial report values that are not supported by Conexxus format.
NAXML-MovementReport/ItemSalesMovement/ ISMDetail/Extension/Size	The Size field's value from the Item Sales by Tags report.
NAXML-MovementReport/ItemSalesMovement/ ISMDetail/Extension/UnitCostPrice	The Unit Cost field's value from the Item Sales by Tags report.
NAXML-MovementReport/ItemSalesMovement/ ISMDetail/Extension/TotalCost	The Cost field's value from the Item Sales by Tags report.
NAXML-MovementReport/ItemSalesMovement/ ISMDetail/Extension/Profit	The Profit field's value from the Item Sales by Tags report.
NAXML-MovementReport/ItemSalesMovement/ ISMDetail/Extension/GPM	The GPM field's value from the Item Sales by Tags report.
NAXML-MovementReport/ItemSalesMovement/ ISMDetail/Extension/BuydownByPurchTotal	The Buydown by Purch field's value from the Item Sales by Tags report. Must be equal to the summary of values shown in detailed <PromotionTotal> xml sections with PromotionReason = buydownbypurch.
NAXML-MovementReport/ItemSalesMovement/ ISMDetail/Extension/BuydownBySalesTotal	The Buydown by Sales field's value from the Item Sales by Tags report. Must be equal to the summary of values shown in detailed <PromotionTotal> xml sections with PromotionReason = buydownbysales.
XML Path	Source
NAXML-MovementReport/MerchandiseCodeMovement/ ReportSequenceNumber	Unique report number for future references.
NAXML-MovementReport/MerchandiseCodeMovement/ MovementHeader/PrimaryReportPeriod	Always equals to 1.
NAXML-MovementReport/MerchandiseCodeMovement/ MovementHeader/BusinessDate	The date when the report was generated and sent. Equals the date value of the Report date and time.
NAXML-MovementReport/MerchandiseCodeMovement/ MovementHeader/BeginDate	Beginning of the date range configured for the report build. On automated export, will be equal to the business date. Equals to the Period value.
NAXML-MovementReport/MerchandiseCodeMovement/ MovementHeader/BeginTime	Beginning of the date range configured for the report build. On automated export, will equal to 00:00:00.
NAXML-MovementReport/MerchandiseCodeMovement/ MovementHeader/EndDate	Ending of the date range configured for the report build. On automated export, will be equal to the business date. Equals to the Period value.
NAXML-MovementReport/MerchandiseCodeMovement/ MovementHeader/EndTime	Ending of the date range configured for the report build. On automated export, will be equal to 23:59:59.
NAXML-MovementReport/MerchandiseCodeMovement/ MCMDetail	Section is created for each unique department containing data for its direct sales.
NAXML-MovementReport/MerchandiseCodeMovement/ MCMDetail/MerchandiseCode	CSO Department ID assigned for department.
NAXML-MovementReport/MerchandiseCodeMovement/ MCMDetail/MerchandiseCodeDescription	Department Name recorded for department in CSO.
NAXML-MovementReport/MerchandiseCodeMovement/ MCMDetail/MCMSalesTotals	Contains totals for the direct department sales record.
NAXML-MovementReport/MerchandiseCodeMovement/ MCMDetail/MCMSalesTotals/SalesQuantity	The QTY field's value from the Item Sales by Tags report indicated for non itemized sale.
NAXML-MovementReport/MerchandiseCodeMovement/ MCMDetail/MCMSalesTotals/SalesAmount	The Non-itemized Sales field's value from the Item Sales by Tags report indicated for department sale.

To learn more about CStoreOffice® forms and entities mentioned in the Description and PB Source columns, use the Cost of Goods Sold Settings in CStoreOffice® section or Petrosoft University Portal.

XML Example with Cost of Goods Sold Data

The XML example below contains data on the first item from the Item Sales By Tags report displayed in the images below.

The example below is taken from the testing environment with testing data. No association with any real company, product, event, or data is intended or should be inferred.

XML Example with Cost of Goods Sold Data


<?xml version="1.0"?>
<pur:ItemSalesMovementPublisherMessage xmlns="http://xsd-storage.petrosoft.cloud/v0.0.3/HeaderType" xmlns:nax="http://xsd-storage.petrosoft.cloud/POSBO/Vocabulary/2003-10-16" xmlns:pur="http://xsd-storage.petrosoft.cloud/ItemSalesMovementPublisherMessage" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://xsd-storage.petrosoft.cloud/ItemSalesMovementPublisherMessage/ItemSalesMovementPublisherMessage.xsd">
  <Header>
    <TransactionId>873a3398-c2d5-11e7-abc4-cec278b6b50a</TransactionId>
    <CorrelationId>18277d16-c2d6-11e7-abc4-cec278b6b50a</CorrelationId>
    <PublisherAccountId>101</PublisherAccountId>
    <Localization>en</Localization>
    <DocumentXpath/>
    <Subscriber>
      <SubscriberZoneId/>
      <SubscriberCompanyId/>
      <SubscriberAccountId/>
      <SubscriberLocationId>101</SubscriberLocationId>
    </Subscriber>
  </Header>
  <pur:DataArea>
    <NAXML-MovementReport version="">
      <TransmissionHeader>
        <StoreLocationID>101</StoreLocationID>
        <VendorName>CStoreOffice</VendorName>
        <VendorModelVersion>NAXML3.4.5</VendorModelVersion>
      </TransmissionHeader>
      <ItemSalesMovement>
        <MovementHeader>
          <ReportSequenceNumber>23423</ReportSequenceNumber>
          <PrimaryReportPeriod>1</PrimaryReportPeriod>
          <BusinessDate>2021-08-02</BusinessDate>
          <BeginDate>2021-08-02</BeginDate>
          <BeginTime>11:22:23</BeginTime>
          <EndDate>2021-08-02</EndDate>
          <EndTime>11:22:23</EndTime>
        </MovementHeader>
        <ISMDetail>
          <ItemCode>
            <POSCodeFormat format="gtin"/>
            <POSCode>00073100004575</POSCode>
            <POSCodeModifier>0</POSCodeModifier>
          </ItemCode>
          <ItemID>00073100004575</ItemID>
          <Description>Skoal Mint Pouches</Description>
          <MerchandiseCode>1</MerchandiseCode>
          <ISMSellPriceSummary>
            <ActualSalesPrice>4.93</ActualSalesPrice>
            <ISMSalesTotals>
              <SalesQuantity>4</SalesQuantity>
              <SalesAmount>19.72</SalesAmount>
              <PromotionTotal>
                <PromotionID>2158946</PromotionID>
                <PromotionCount>4</PromotionCount>
                <PromotionQuantity>4</PromotionQuantity>
                <PromotionAmount>2</PromotionAmount>
                <PromotionReason>buydownbypurch</PromotionReason>
              </PromotionTotal>
              <PromotionTotal>
                <PromotionID>2158961</PromotionID>
                <PromotionCount>2</PromotionCount>
                <PromotionQuantity>2</PromotionQuantity>
                <PromotionAmount>1</PromotionAmount>
                <PromotionReason>buydownbysales</PromotionReason>
              </PromotionTotal>
            </ISMSalesTotals>
          </ISMSellPriceSummary>
          <Extension>
            <Size>CAN</Size>
            <UnitCostPrice>4.17</UnitCostPrice>
            <TotalCost>18.68</TotalCost>
            <Profit>4.04</Profit>
            <GPM>20.49</GPM>
            <BuydownByPurchTotal>2</BuydownByPurchTotal>
            <BuydownBySalesTotal>1</BuydownBySalesTotal>
          </Extension>
        </ISMDetail>
      </ItemSalesMovement>
    </NAXML-MovementReport>
  </pur:DataArea>
</pur:ItemSalesMovementPublisherMessage>

To download the XML Example with Cost of Goods Sold Data XML file, click here.

Cost of Goods Sold Data Export via the Business Documents API

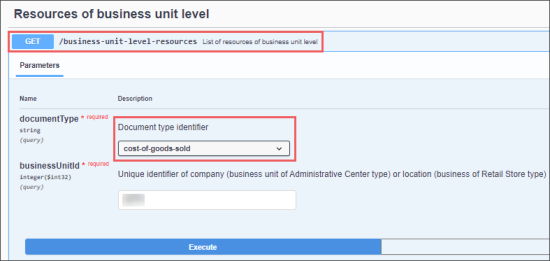

To export the XML files with the Cost of Goods Sold Data via the Business Documents API:

Prepare the location (station) or company identifier as the input data.
Start calling the API from the /business-unit-level-resources endpoint.
Use cost-of-goods-sold as the Document type identifier value.

For more information, see Calling the Business Documents API at the Business Unit Level.
