This section provides only basic settings and steps required for QwickServe infrastructure configuration. For detailed information about the site configuration, refer to BP Commander Network Configuration Manual that can be obtained from BP technicians.
In all configurations, QwickServe and DC-401 devices must be connected to the back-office VLAN of the firewall device. In this case, it is LAN 3 port of the firewall device that serves the VLAN 4 store network.
BP-branded sites vary in the exact firewall device utilized. However, only specific devices are approved. The port number will always be LAN3 on the firewall regardless of the exact model.
The following firewall devices can be used at BP sites:
- Mako 6500 (most common)
- Hughes HR4700
- Fortigate
LAN3 supplies the Internet to devices connected to LAN 3 port when the devices are using DNS servers provided by BP.
A switch can be installed in LAN3 to extend the number of connected devices and provide the manager's computer with the Internet access and a safe route to Verifone Commander.
Common Network Settings
- Back-office zone: LAN3
- LAN IP range: 192.168.13.0
- Gateway: 192.168.13.1
- Netmask: 255.255.255.192
- DNS1: 66.82.4.8
- DNS2: 66.82.4.12
- Commander IP: 192.168.12.21

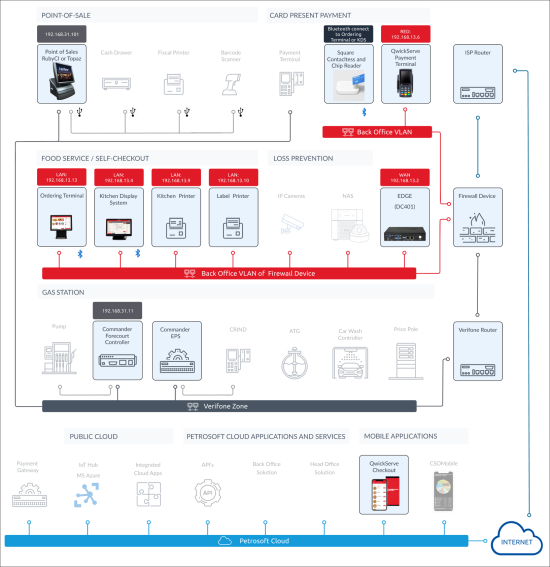

Configuration Diagram
Connection Details
Firewall Device
In the picture below, Mako 6500 is shown.
- Port: LAN 3
- Static IP: 192.168.13.1
- Cable: Ethernet
Edge (DC-401)
- Port: WAN
- Static IP: 192.168.13.2
- Cable: Ethernet
QwickServe Ordering Terminal
- Port: LAN
- Static IP: 192.168.13.3
- Cable: Ethernet
Additional units must have static IP addresses starting from 192.168.13.9+.
QwickServe Order Manager
- Port: LAN
- Static IP: 192.168.13.4
- Cable: Ethernet
Additional units must have static IP addresses starting from 192.168.13.9+.
QwickServe Payment Terminal
- Port: RED static
- IP: 192.168.13.6
- Cable: Ethernet
Kitchen and Customer Receipt Printer
- Port: LAN
- Static IP: 192.168.13.9
- Cable: Ethernet
Additional units must have static IP addresses starting from 192.168.13.9+.
Label Printer
- Port: LAN
- Static IP: 192.168.13.10
- Cable : Ethernet
Additional units must have static IP addresses starting from 192.168.13.9+.
Deploying the QwickServe Infrastructure
To set up the QwickServe infrastructure:
- Connect the network switch to the firewall device, port LAN 3 (if it is not already connected).
- Connect DC-401 to the network switch using the WAN port on DC-401.
- Follow the DC-401 Activation Guide to connect DC-401 to Petrosoft Cloud. For details, see
- Connect the QwickServe Ordering Terminal to the network switch.
- Configure static IP addressing at the QwickServe Ordering Terminal. For details, see
- Connect the QwickServe Order Managerto the network switch.
- Configure static IP addressing at the QwickServe Order Manager. For details, see Connecting QwickServe Order Managerto the LAN.
- Connect the kitchen and customer receipt printer to the network switch.
- Configure static IP addressing at the kitchen and customer receipt printer. For details, see Thermal Printer for Receipts, Kitchen Tickets and Reports.
- Connect the label printer to the network switch.
- Configure static IP addressing at the label printer. For details, see
