You can set up the QwickServe infrastructure and CStoreOffice® to work with the Gilbarco Passport POS.
Setup Considerations
- QwickServe devices, including QwickServe Ordering Terminal, QwickServe Order Manager, customer receipt and kitchen ticket printers and label printers must be connected to the same network.
- From the Gilbarco Passport POS standpoint, all QwickServe devices are a part of back-office services. If you use CStoreOffice® as the back-office system, QwickServe devices must be connected in the same way as DC-401. For details, see
Site Outline
The table below lists all hardware devices that can be deployed in the QwickServe infrastructure. Refer to the last column to check if the device is mandatory or optional for deployment.
|
Name |
Description |
Required |
|---|---|---|
|
Gilbarco Passport cash register |
Cash register used at the site to pay for regular customers orders and QwickServe orders. |
Yes |
|
Passport router |
Network router provided by Gilbarco and used to separate and control the POS local zone network. |
Yes |
|
DMZ router |
Demilitary Zone router provided by Gilbarco and used to separate the back-office and other devices DMZ network. |
Yes |
|
ISP router |
Internet Service Provider router. Allows access to Internet for all devices, including POS, DC-401 and QwickServe devices. |
Yes |
|
Edge (DC-401) |
Direct Connect Site Controller from Petrosoft designed to allow communication between the site and back-office system. |
No Yes, if CStoreOffice® is used as the back-office system. |
|
QwickServe Ordering Terminal |
QwickServe Ordering Terminal or QwickServe Ordering Terminal App installed on the Android tablet. Required to create orders onsite. |
Yes |
|
QwickServe Order Manager |
QwickServe Order Manager installed on the QwickServe device or Android tablet. Required to handle orders received from the QwickServe Ordering Terminal or mobile applications. |
Yes |
|
QwickServe payment terminal |
PIN pad connected to the QwickServe Ordering Terminal and used by customers to pay for orders created at the QwickServe Ordering Terminal. |
No |
|
Square contactless and chip reader |
Card and contactless reader device from Square (https://squareup.com/shop/hardware/us/en/products/chip-credit-card-reader-with-nfc). Used for card present and contactless payments. Connects to attended QwickServe Ordering Terminal and/or QwickServe Order Manager over Bluetooth. |
No |
|
Kitchen printer |
Thermal printer used to print kitchen tickets. |
No |
|
Label Printer |
Thermal printer used to print items labels that can be attached to prepared items. |
No |

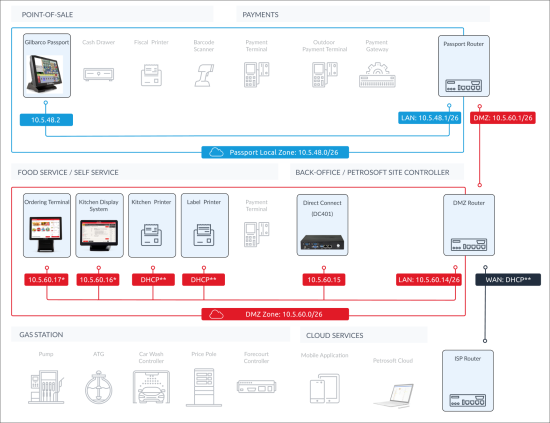

General Configuration Diagram: Retail, Fuel and Food Service
Mind the following:
- Elements marked with * may have different IPs in same subnet depending on the desired configuration.
- Elements marked with ** may have static IPs in same subnet depending on the desired configuration.
- Elements grayed out may be present at the site but are not a part of the QwickServe infrastructure.
- The provided configuration is typical and recommended for majority of sites. In some cases, when a custom network is configured, the configuration may differ. If so, please contact the Petrosoft Support Team.
