Getting API Authorization Data
- Getting the Authorization Token
- Refreshing the Authorization Token
- Authorization API
- Endpoints
- /v1/auth/token
- Parameters
- Request Example
- Response
- Errors - /v1/auth/refresh_token
- Parameters
- Request Example
- Response
- Errors
Prerequisites
Any active CStoreOffice® user account, regardless of role or permissions, can be used to authorize access to the Business Documents API. However, we recommend creating a dedicated service account specifically for API access, rather than using your existing account for the CStoreOffice® console.
If you do not have administrative permissions for CStoreOffice®, contact your system administrator to create an account for you. Refer to the information below for details on how to create an account that does not require regular password updates.
Setting an account with non-expiring password
By default, CStoreOffice® requires users to update their password every 90 days, which may not be suitable for service accounts, as frequent password changes can disrupt automated processes and integrations. To avoid interruptions and manual intervention, consider configuring an account that does not require regular password updates. This can be achieved by using a specific email address format designated for service accounts: <any text>.api@<domain name>. For example:
- bd.api@acme.com
- cso.api@myshop.eu
It is highly unrecommended to use email addresses that prevent automatic password expiry for common accounts, as they pose potential security risks.
Getting the Authorization Token
To get the authorization token:
- Go to Authorization API:
https://api-docs.petrosoft.cloud/?service=device_gateway_proxy_service - Use the
/v1/auth/token
endpoint. - Click Try it out.

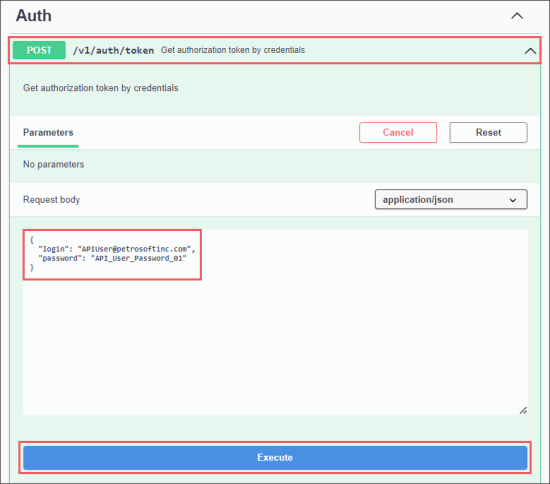

- Send the authorization request. Request parameters:
Parameter | Description |
login
|
Email address of the CStoreOffice® user. |
password
|
The CStoreOffice® user password. |
- Receive the
access_token
value. It will be used as the authorization token for the Inventory Item API.
For confidentiality reasons, the token data in the images is blurred intentionally.
Refreshing the Authorization Token
After a certain period of time the authorization token expires and you need to refresh it.
To refresh the authorization token:
- Go to Authorization API:
https://api-docs.petrosoft.cloud/?service=device_gateway_proxy_service - Use the
/v1/auth/refresh_token
endpoint. - Click Try it out.
- Send the refreshing request. Request parameters:
Parameter | Description |
refresh_token
|
Refresh token received from Authorization API during previous getting the authorization token or refreshing the authorization token request. |
- Receive the refreshed
access_token
value. It will be used as the authorization token for the Inventory Item API.
For confidentiality reasons, the token data in the images is blurred intentionally.
Authorization API
The Authorization API is used to generate and refresh authorization tokens for the API users. Tokens are required to get authorized with the Petrosoft APIs.
The Authorization API interacts with POST methods. To open the API, go to:
https://api-docs.petrosoft.cloud/?service=device_gateway_proxy_service.
Endpoints
/v1/auth/token
Use it to get the authorization token by the API user credentials.
Parameters
Parameter | Description |
login
|
Email address of the CStoreOffice® user. |
password
|
The CStoreOffice® user password. |
Request example
{
"login": "cso.api@mydomain.com",
"password": "Pa$$w0rd"
}
Response
Response Code
200
Response Parameters
Parameter | Description |
access_token
|
Access token to use for authorization during API requests. |
expires_in
|
Access token expiration timeout in minutes. |
refresh_expires_in
|
Refresh token expiration timeout in minutes. |
refresh_token
|
Refresh token used to get new authorization token when previous gets expired. |
token_type
|
Token type identification. |
not-before-policy
|
Unique token ID. |
session_state
|
Session status. |
Response Example
{
"access_token": "eyJhbGciOiJSUzI1Nixxxxxxxxxxxxxxxxxxxxxxxa3NfMG1aQW1wQm9Ea2VyNlRVT3hiMkhBUjkzRXpQYm1NIn0.eyJqdGkiOiI5NzRlMGQzYi0yOGMwLTQ3YWItYmQ4NC1kMWRkNjU3NDdlM2YiLCJleHAiOjE2NTY2NjM4NTUsIm5iZiI6MCwiaWF0IjoxNjU2NTc3NDU1LCJpc3MiOiJodHRwczovL2tjLnBldHJvc29mdC5jbG91ZC9hdXRoL3JlYWxtcy9jaxxxxxxxxxxxxxxxxxxxxxxxxx3ViIjoiMzZjYjk4ZTYtODRmZS00NzBmLWI0NWUtMjQ3NTYyYTM4NTc0IiwidHlwIjoiQmVhcmVyIiwiYXpwIjoib2lkYyIsImF1dGhfdGltZSI6MCwic2Vzc2lvbl9zdGF0ZSI6IjIyZGYyOGY1LWNiNDQtNDI5ZS04ZTQxLWZiYjc2MmJjZTE4YyIsImFjciI6IjEiLCJhbGxvd2VkLW9yaWdpbnMiOlsiKiIsImNsb3VkLmthcHBhLnBldHJvc29mdGluYy5jb20iLCIqLmNsb3VkLmthcHBhLnBldHJvc29mdC5jbG91ZC8qIl0sInJlYWxtX2FjY2VzcyI6eyJyb2xlcyI6WyJvZmZsaW5lX2FjY2VzcyIsImFkbWluIiwidW1hX2F1dGhvcml6YXRpb24iXX0sInJlc291cmNlX2FjY2VzcyI6eyJhY2NvdW50Ijp7InJvbGVzIjpbIm1hbmFnZS1hY2NvdW50IiwibWFuYWdlLWFjY291bnQtbGlua3MiLCJ2aWV3LXByb2ZpbGUiXX19LCJzY29wZSI6IiIsImFjY291bnRJZCI6NDYsImxvY2F0aW9uSWRzIjoiMTUyOSIsIm5hbWUiOiJPbGdhIE1vcmxhbmciLCJwcmVmZXJyZWRfdXNlcm5hbWUiOiJvLm1vcmxhbmdAcGV0cm9zb2Z0aW5jLmNvbSIsImdpdmVuX25hbWUiOiJPbGdhIiwiZmFtaWx5X25hbWUiOiJNb3JsYW5nIiwiZW1haWwiOiJvLm1vcmxhbmdAcGV0cm9zb2Z0aW5jLmNvbSJ9.kfaD_p5xG126V5hUZJvPV6PsLWAcA0B8pzWZUYt8omFmsgOkGxB32Wunucjbh4pfmT3M6A28dEjAJxolXp8P0uqPJGZVjhloYAYYqHw5JL78ToWq0gmukfc0eEtekiubvO0H3bqZA3V93IWu3yjwCpGQYAOg1qwYYc9nPgIKT7gW5VWKOvuX0te2I8X38xvJAmHVxeP_gd36S9WgiuKOUvc_YctindcJZpVCuBl--qCJI_Fce6qqJ4zG5OCvyBgeZSOt6WD8OCzGzMA0WNEzatQlKZvC1UzE2zp3SiEVehtATJAkIDBiTrY85y4R-SfOaWnJBzCZLq4qjC4m3q9kAA",
"expires_in": 86400,
"refresh_expires_in": 86400,
"refresh_token": "eyJhbGciOiJIUzI1NiIsInR5cCIgOiAiSldUIiwixxxxxxxxxxxxxxxxxxxxxxxtYjI0Zi01NGJkOGVlNWRlYzAifQ.eyJqdGkiOiI5ODQ1YmY3NC01OGM4LTQ5ZGYtYWZmNy0zNzdhY2ZkMzg5MDQiLCJleHAiOjE2NTY2NjM4NTUsIm5iZiI6MCwiaWF0IjoxNjU2NTc3NDU1LCJpc3MiOiJodHRwczovL2tjLnBldHJvc29mdC5jbG91ZC9hdXRoL3JlYWxtcy9jaxxxxxxxxxxxxxxxxxxx2tjLnBldHJvc29mdC5jbG91ZC9hdXRoL3JlYWxtcy9jaWQiLCJzdWIiOiIzNmNiOThlNi04NGZlLTQ3MGYtYjQ1ZS0yNDc1NjJhMzg1NzQiLCJ0eXAiOiJSZWZyZXNoIiwiYXpwIjoib2lkYyIsImF1dGhfdGltZSI6MCwic2Vzc2lvbl9zdGF0ZSI6IjIyZGYyOGY1LWNiNDQtNDI5ZS04ZTQxLWZiYjc2MmJjZTE4YyIsInJlYWxtX2FjY2VzcyI6eyJyb2xlcyI6WyJvZmZsaW5lX2FjY2VzcyIsImFkbWluIiwidW1hX2F1dGhvcml6YXRpb24iXX0sInJlc291cmNlX2FjY2VzcyI6eyJhY2NvdW50Ijp7InJvbGVzIjpbIm1hbmFnZS1hY2NvdW50IiwibWFuYWdlLWFjY291bnQtbGlua3MiLCJ2aWV3LXByb2ZpbGUiXX19LCJzY29wZSI6IiJ9.NRd6Kym3R-exJVDY8ZG2pwrjp0dY48mGKlTdXHyFuJY",
"token_type": "bearer",
"not-before-policy": 1xx0857782,
"session_state": "2xxxxx5-cb44-429e-8e41-fxxxxxe18c",
"scope": ""
}
Errors
400: Bad Request
401: Unauthorized
Parameter | Description |
error
|
Error indicator. |
error_description
|
Details for failure reason. |
{
"error": "invalid_grant",
"error_description": "Invalid user credentials"
}
404: Not Found
500: Internal Server Error
Parameter | Description |
success
|
API request success status indicator. |
data
|
N/A. |
message
|
Details for failure reason. |
http_code
|
Error code. |
errors
|
N/A. |
total
|
N/A. |
{
"success": false,
"data": [],
"message": "Provider App\\Application\\TokenProvider\\CredentialsTokenProvider can't implement operation due restrictions.",
"http_code": 500,
"errors": [],
"total": null
}
/v1/auth/refresh_token
Use it to refresh the authorization token by related token identifier.
Parameters
Parameter | Description |
refresh_token
|
Refresh token received from Authorization API during previous get token or refresh token request. |
Request example
{
"refresh_token": "eyJhbGciOiJIUzI1NiIsInR5cCIgxxxxxxxxxxxxxxxxxxxxxxI0NWQ1MC05NzY5LTQ0NWMtYjI0Zi01NGJkOGVlNWRlYzAifQ.eyJqdGkiOiJiY2JmNGZiNC1lZDA5LTRkMWItOWM2ZS1kYjJhMTNhYTBlZmYiLCJleHAiOjE2NTY2NjU4NDcsIm5iZiI6MCwiaWF0IjoxNjU2NTc5NDQ3LCJpc3MiOiJodHRwczovL2tjLnBldHJvc29mdC5jbG91ZC9hdXRoL3JlYWxtcy9jaWQiLCJhdWQiOiJodHRwczovL2tjLnBldHJvc29mdC5jbG91ZC9hdXRoL3JlYWxtcy9jaWQiLCJzdWIiOiIzNmNiOThlNi04NGZlLTQ3MGYtYjQ1ZS0yNDc1NjJhMzg1NzQiLCJ0eXAiOiJSZWZyZXNoIiwiYXpwIjoib2lkYyIsImF1dGhfdGltZSI6MCwic2Vzc2lvbl9zdGF0ZSI6IjQ3OTZkNDhjLTkxZjktNGQwNy1iODRhLTI4MTJhOWU2MzM2NiIsInJlYWxtX2FjY2VzcyI6eyJyb2xlcyI6WyJvZmZsaW5lX2FjY2VzcyIsImFkbWluIiwidW1hX2F1dGhvcml6YXRpb24iXX0sInJlc291cmNlX2FjY2VzcyI6eyJhY2NvdW50Ijp7InJvbGVzIjpbIm1hbmFnZS1hY2NvdW50IiwibWFuYWdlLWFjY291bnQtbGlua3MiLCJ2aWV3LXByb2ZpbGUiXX19LCJzY29wZSI6IiJ9.b16v_64TUVFEsrCOLjtkp9vYYQrGjbdjjMoqWn67Yos"
}
Response
Response Code
200
Response Parameters
Parameter | Description |
access_token
|
Access token to use for authorization during API requests. |
expires_in
|
Access token expiration timeout in minutes. |
refresh_expires_in
|
Refresh token expiration timeout in minutes. |
refresh_token
|
Refresh token used to get new authorization token when previous gets expired. |
token_type
|
Token type identification. |
not-before-policy
|
Unique token ID. |
session_state
|
Session status. |
Response Example
{
"access_token": "eyJhbGciOiJSUzI1NiIsInR5cCIgOiAxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx1S1dha3NfMG1aQW1wQm9Ea2VyNlRVT3hiMkhBUjkzRXpQYm1NIn0.eyJqdGkiOiJhMDRkZmY3Yi1jODBkLTQ1MmUtODNjYi04MDM4NDA4Mjg4ODAiLCJleHAiOjE2NTY2NjU4NDcsIm5iZiI6MCwiaWF0IjoxNjU2NTc5NDc0LCJpc3MiOiJodHRwczovL2tjLnBldHJvc29mdC5jbG91ZC9hdXRoL3JlYWxtcy9jaWQiLCJhdWQiOiJhY2NvdW50Iiwic3ViIjoiMzZjYjk4ZTYtODRmZS00NzBmLWI0NWUtMjQ3NTYyYTM4NTc0IiwidHlwIjoiQmVhcmVyIiwiYXpwIjoib2lkYyIsImF1dGhfdGltZSI6MCwic2Vzc2lvbl9zdGF0ZSI6IjQ3OTZkNDhjLTkxZjktNGQwNy1iODRhLTI4MTJhOWU2MzM2NiIsImFjciI6Ijxxxxxxxd2VkLW9yaWdpbnMiOlsiKiIsImNsb3VkLmthcHBhLnBldHJvc29mdGluYy5jb20iLCIqLmNsb3VkLmthcHBhLnBldHJvc29mdC5jbG91ZC8qIl0sInJlYWxtX2FjY2VzcyI6eyJyb2xlcyI6WyJvZmZsaW5lX2FjY2VzcyIsImFkbWluIiwidW1hX2F1dGhvcml6YXRpb24iXX0sInJlc291cmNlX2FjY2VzcyI6eyJhY2NvdW50Ijp7InJvbGVzIjpbIm1hbmFnZS1hY2NvdW50IiwibWFuYWdlLWFjY291bnQtbGlua3MiLCJ2aWV3LXByb2ZpbGUiXX19LCJzY29wZSI6IiIsImFjY291bnRJZCI6NDYsImxvY2F0aW9uSWRzIjoiMTUyOSIsIm5hbWUiOiJPbGdhIE1vcmxhbmciLCJwcmVmZXJyZWRfdXNlcm5hbWUiOiJvLm1vcmxhbmdAcGV0cm9zb2Z0aW5jLmNvbSIsImdpdmVuX25hbWUiOiJPbGdhIiwiZmFtaWx5X25hbWUiOiJNb3JsYW5nIiwiZW1haWwiOiJvLm1vcmxhbmdAcGV0cm9zb2Z0aW5jLmNvbSJ9.J0JrFaLjVd5eApXUdMTSWu_RsBTRywMTMsteBvocDMUeM3eJfRPoIm60xFrewqhnUDSdzH6eEZT1V9FG8_KVSXFdo1gGovou7KC5m8tOsD3XOOix-XS5BC-Hs5HV2J7fscyoXSzxKCxHwBtlVUJAAN17lGdimJQX87JRe1yDgck2qBtmfdmo-IhYU4xaOU53tq8Vbb6OG1xwJJyjrBXEdLljuH6YJPLf6qjzowh5B5hdm0GqPbh_foLIxt3jIUM_1_8qx4HrCK57eciXHeyzHjMbO_YLxXMeJFDgAdcNPP0qgLKFvK6143LZYSCchnjsKhmZWiEJB6rA24qb1uSRKg",
"expires_in": 86373,
"refresh_expires_in": 86373,
"refresh_token": "eyJhbGciOiJIUzI1NiIsInR5cCIgOiAiSlxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxNWMtYjI0Zi01NGJkOGVlNWRlYzAifQ.eyJqdGkiOiJlYTM3MGNmMC1lMTM0LTQxZjgtOTQzNy1mYjU3MjlhYjRlOGQiLCJleHAiOjE2NTY2NjU4NDcsIm5iZiI6MCwiaWF0IjoxNjU2NTc5NDc0LCJpc3MiOiJodHRwczovL2tjLnBldHJvc29mdC5jbG91ZC9hdXRoL3JlYWxtcy9jaWQiLCJhdWQiOiJodHRwczovL2tjLnBldHJvc29mdC5jbG91ZC9hdXRoL3JlYWxtcy9jaWQiLCJzdWIiOiIzNmNiOThlNi04NGZlLTQ3MGYtYjQ1ZS0yNDc1NjJhMzg1NzQiLCJ0eXAiOiJSZWZyZXNoIiwiYXpwIjoib2lkYyIsImF1dGhfdGltZSI6MCwic2Vzc2lvbl9zdGF0ZSI6IjQ3OTZkNDhjLTkxZjktNGQwNy1iODRxxxxxxxhOWU2MzM2NiIsInJlYWxtX2FjY2VzcyI6eyJyb2xlcyI6WyJvZmZsaW5lX2FjY2VzcyIsImFkbWluIiwidW1hX2F1dGhvcml6YXRpb24iXX0sInJlc291cmNlX2FjY2VzcyI6eyJhY2NvdW50Ijp7InJvbGVzIjpbIm1hbmFnZS1hY2NvdW50IiwibWFuYWdlLWFjY291bnQtbGlua3MiLCJ2aWV3LXByb2ZpbGUiXX19LCJzY29wZSI6IiJ9.15JVSyJTDV0yvry7ik4qXupXDbO82cEB8U0z3eMN6EY",
"token_type": "bearer",
"not-before-policy": 1xxxx57782,
"session_state": "4xxxx48c-91f9-4d07-b84a-2xxxxxe63366",
"scope": ""
}
Errors
500: Internal Server Error
Parameter | Description |
success
|
API request success status indicator. |
data
|
N/A. |
message
|
Details for failure reason. |
http_code
|
Error code. |
errors
|
N/A. |
total
|
N/A. |
{
"success": false,
"data": [],
"message": "JWT missing parts. Total number of parts: 2 Token: eyJhbGciOiJIUzI1NiIsInR5cCIgOiAc2Vzc2lvbl9zdGF0ZSI6IjQ3OTZkNDhjLTkxZjktNGQwNy1iODRhLTI4MTJhOWU2MzM2NiIsInJlYWxtX2FjY2VzcyI6eyJyb2xlcyI6WyJvZmZsaW5lX2FjY2VzcyIsImFkbWluIiwidW1hX2F1dGhvcml6YXRpb24iXX0sInJlc291cmNlX2FjY2VzcyI6eyJhY2NvdW50Ijp7InJvbGVzIjpbIm1hbmFnZS1hY2NvdW50IiwibWFuYWdlLWFjY291bnQtbGlua3MiLCJ2aWV3LXByb2ZpbGUiXX19LCJzY29wZSI6IiJ9.b16v_64TUVFEsrCOLjtkp9vYYQrGjbdjjMoqWn67Yos",
"http_code": 500,
"errors": [],
"total": null
}
